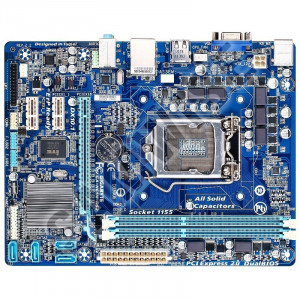

Placa de baza Gigabyte GA-H61M-DS2 REV 4.0, LGA1155, DDR3,

Descriere

Se vinde placa de baza si tablita, fara alte accesorii

Produsul este second hand, testat, stare perfecta de functionare

Pozele sunt informative

Garantie 6 luni

Procesoare suportate: Intel Core i7 /Intel Core i5 / Intel Core i3 /Intel Pentium /Intel Celeron
Socket: LGA1155
Intel H61 Express Chipset
Memorie suportata::
2 x 1.5V DDR3 DIMM sockets
Memorie maxima RAM: 16GB
Dual channel
DDR3 2200(OC)/1333/1066/800 MHz non-ECC
Support for Extreme Memory Profile (XMP) (Ivy Bridge only)

Onboard Graphics: Integrated Graphics Processor
1 x D-Sub port

Audio:
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN: Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots:
1 x PCI Express x16 slot, running at x16 3.0 standard
2 x PCI Express x1 slots

Storage Interface: Chipset:
4 x SATA II 3Gb/s

USB: Chipset:
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Back Panel Connectors:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x parallel port
1 x serial port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control

BIOS:
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features:
Support for BIOS
Support for Q-Flash
Support for EasyTune

Form Factor:
Micro ATX Form Factor; 22.6cm x 17.4cm
