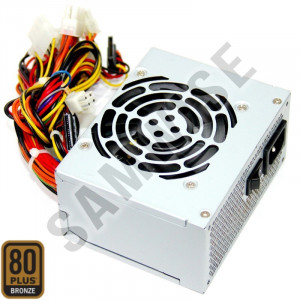

Sursa microATX FSP 300W FSP300-60GHS(85) MINI, 2x SATA, Certificare 80+ Bronze, PFC Activ

Descriere

Sursa funtioneaza impecabil, a fost testata pe sistem la o sarcina adecvata.

Garantie 12 luni.

Pozele sunt informative.

Brand: FSP Group

Model: FSP300-60GHS-R

Type: SFX12V

Putere: 300W

Ventilator: 1 x 80mm sleeve-bearing fan linked with Thermal Sensor

Conector placa de baza: 20+4Pin

+12V Rails: 2

SATA x 2

Haswell Support: Yes

Eficienta: > 80% (BRONZE)

Energy-Efficient: 80 PLUS Certificata

Over Voltage Protection: Yes

Input Voltage: 115 / 230 V

Input Frequency Range: 47 - 63 Hz

Input Current: < 3.5 A @ 115 Vrms, 60 Hz; < 2.0 A @ 230 Vrms, 50 Hz

Output: +3.3V@20A, +5V@22A, +12V1@14A, +12V2@16A, -12V@0.5A, +5VSB@2.5A

MTBF: >100,000 Hours

Approvals: UL, FCC, CE, IEC, CSA, TUV/VDE, NEMKO, BSMI, CCC

Dimensions: 4.92" x 3.94" x 2.50"

Weight: 1.90 lbs.

Connectori

1 x Main connector (20+4Pin)

1 x 4 Pin EPS 12V

3 x Peripheral

2 x SATA

1 x Floppy

Supports AMD/Intel CPU System

300-watt Micro ATX For PC

High Power Conversion Efficiency | 80plus Certified

80mm Cooling Fan System

Thermal Control System Linked To Fan

Energy Saver | 1-watt Standby Mode

Supports Serial-ata Output

Energy Saving Calculator
